j5create
J5create JCD554 USB4 Triple 4K Display Docking Station
Part No: JCD554
Price NA
No current market price found — request a quote for Disti pricing.
Specifications
- Manufacturer
- j5create
- Model
- J5create JCD554
- Manufacturer Part No
- JCD554
- Compatible Country
- Middle East, Africa, Iran, Dubai
- Country of Origin
- China
- EAN Code
- 4712795088182
- Product HS Code
- 8471800000
Recommended products
Similar or newer options from the same brand
J5create JCD393 4K60 Elite USB-C 10Gbps Mini Dock
AED 840
Indicative list price — request a quote for Disti pricing.
J5create JTD568 Thunderbolt 4 Quad Display Docking Station
Price NA
Market rate · indicative

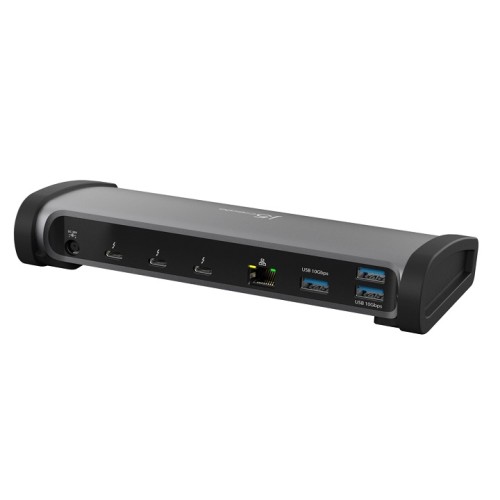

J5create JTD562 8K Thunderbolt 4 Docking Station
Price NA
Market rate · indicative
J5create JUD380 USB 3.0 Mini Dock
AED 840
Indicative list price — request a quote for Disti pricing.
Alternate / cross-brand similar products
AI-matched alternatives based on specifications
UGreen
UGreen CM681 Revodok Pro 313 13 in 1 USB C Docking Station - 15978
Price NA
Market rate · indicative
TARGUS
Targus DOCK423EU USB-C Dual HDMI 4K Docking Station with 100W PD Pass-Thru
Price NA
Market rate · indicative
Dell
Dell Universal Docking Station D6000 – 452-BCYJ
Price NA
Market rate · indicative
TARGUS
Targus DOCK419EUZ USB-C DP Alt Mode Single Video 4K HDMI/VGA Docking Station with 100W PD Pass-Thru
Price NA
Market rate · indicative
Dell
Dell WD19S Docking Station 130W
AED 829
Market rate · indicative
Lenovo
Lenovo 40AJ0135UK Ultra Dock CS18 135W Docking Station
Price NA
Market rate · indicative
MOWSIL
Mowsil MOCHB10 10-in-1 USB-C Hub
Price NA
Market rate · indicative
PROMATE
Promate PowerBolt5-80G 80Gbps USB4 Cable
Price NA
Market rate · indicative
Product description & technical overview
j5create J5create JCD554
| Hardware | |
|---|---|
| Host Connector | 1 x USB4 Male |
| Audio Supported | Yes |
| Network Interface | RJ45 (Gigabit Ethernet) |
| Ports | 1 x USB-C 10Gbps with DisplayPort Alt Mode 1 x USB Type-A USB 2.0 (480 Mbps) 2 x USB Type-A USB 3.2 Gen 2 (10Gbps) 1 x DisplayPort (4K) 2 x HDMI (4K) 1 x SD / microSD 4.0 Card Reader 1 x Gigabit Ethernet (RJ45) 1 x USB-C Power Delivery 3.0 1 x 3.5mm Audio Combo Jack |
| Video Output | 1 x DisplayPort Female 2 x HDMI Female 1 x USB-C with DisplayPort Alternate Mode |
| Power Source | Bus-powered or self-powered |
| Performance | |
| Displays Supported | Up to 3 |
| Maximum Data Transfer Rate | 10 Gbps |
| Maximum Display Refresh Rate | 4K 60 Hz |
| Maximum Display Resolution | Single Display (with DSC): 3840 x 2160 60 Hz 2560 x 1440 120 Hz / 144 Hz 1920 x 1080 144 Hz Dual Display (with DSC): 3840 x 2160 60 Hz x 2 Triple Display (with DSC): Windows (Thunderbolt 4 / USB4 + MST) 3840 x 2160 @ 60 Hz x 3 |
| Audio Channel | 2.1 via HDMI, DisplayPort, or USB-C |
| Compatible Networks | Yes |
| Power | |
| Power Delivery | Up to 85W via USB-C |
| Input Voltage | Up to 20V |
| Input Current | Up to 3A |
| Output Voltage | Up to 20V |
| Output Current | Up to 4.25A |
| Power Consumption | 900 mA |
| Physical Specifications | |
| Color | Space Gray & Black |
| Enclosure Type | Aluminum |
| Cable Length | 1.64 ft (50 cm) |
| Dimensions (W x D x H) | 13.54 x 3.20 x 0.93 in. (344 x 81.39 x 23.56 mm) |
| Operating Temperature | 30 to 116F (-1 to 41C) |
| Operating Humidity | < 85% non-condensing |
| Storage Temperature | 0 to 155F (-17 to 68C) |
| Storage Humidity | < 85% non-condensing |
| Package Contents | |
| • JCD554 USB4 Triple 4K Display Docking Station • Quick Installation Guide (QIG) |
|
