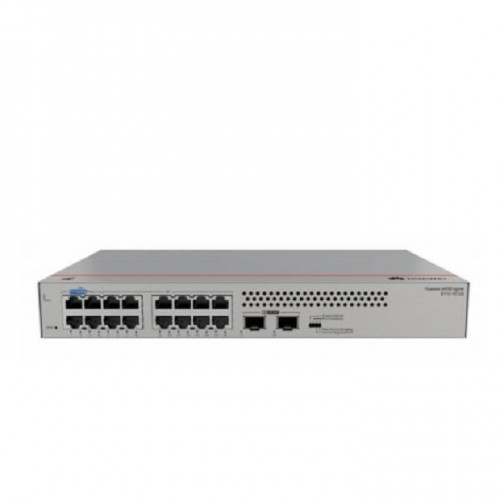

Huawei S110-16T2S eKitEngine Network Switch - 98012200

Part Number 98012200

Model S110-16T2S

Description S110-16T2S (16x10/100/1000BASE-T ports, 2xGE

Dimensions without packaging (H x W x D) [mm(in.)]         Basic dimensions (excluding the parts protruding  from the body): 43.6 mm x 320.0 mm x 210.0 mm (1.72 in. x 12.6 in.                                                                                                                                 x 8.27 in.)

Maximum dimensions (the depth is the distance from ports on the front panel to the parts protruding from the rear                                                                                                                                 panel): 43.6 mm x 320.0 mm x 217.0 mm (1.72 in. x 12.6 in. x 8.54 in.)

Chassis height [U] 1 U

Chassis material          Metal

Weight without packaging [kg(lb)]         1.74 kg (3.84 lb)

Weight with packaging [kg(lb)]         2.30 kg (5.07 lb)

Typical power consumption [W] 11.0 W

Typical heat dissipation [BTU/hour]         37.5 BTU/hour

Maximum power consumption [W] 12 W

Maximum heat dissipation [BTU/hour] 40.9 BTU/hour

Static power consumption [W]         3 W

MTBF [years]         78.75 years

MTTR [hours] 2 hours

Availability         > 0.99999

Noise at normal temperature (acoustic power) [dB(A)]        Noise-free (no fans), < 30

Noise at normal temperature (acoustic pressure) [dB(A)]         Noise-free (no fans), < 20

Number of card slots         0

Number of power slots 0

Number of fans modules 0

Switching capacity To obtain data of this specification item, see  the corresponding datasheet or contact the product sales personnel.

Packet forwarding rate To obtain data of this specification item, see the corresponding datasheet or contact the product sales personnel.

Uplink ports         2 x GE SFP ports

Downlink ports 16 x 10/100/1000BASE-T ports

Working mode Standard mode

MAC address entry 8K

Redundant power supply Not supported

Long-term operating temperature [C(F)]         0C to 40C (32F to 104F) at an altitude of 0-1800m (0-5906 ft.)

Restriction on the operating temperature variation rate [C(F)]                 When the altitude is 1800-5000 m (5906-16404 ft.), the highest operating temperature reduces by 1C (1.8F) every time                                                                                                                                 the altitude increases by 220 m (722 ft.).

Storage temperature [C(F)] –40C to +70C (–40F to +158F)

Long-term operating relative humidity [RH]          5% RH to 95% RH (non-condensing)

Long-term operating altitude [m(ft.)]          0–5000 m (0–16404 ft.)

Storage altitude [m(ft.)]         0-5000 m (0-16404 ft.)

Power supply mode AC built-in

Rated input voltage [V] AC input: 100–240 V AC; 50/60 Hz

Input voltage range [V] AC input: 90 V AC to 264 V AC; 45 Hz to 65 Hz

Maximum input current [A] 1 A

Console port         Not supported

Eth Management port Not supported

USB Not supported

RTC Not supported

RPS input Not supported

Service port surge protection [kV]         Common mode: +6 kV

Power supply surge protection [kV]         +2 kV in differential mode, +4 kV in common mode

Ingress protection level (dustproof/waterproof)         IP20

Types of fans None

Heat dissipation mode Natural heat dissipation

PoE Not supported

Certification          EMC certification
