Cisco
Cisco WS-C6503E-S32P-GE Cisco 6500 Switch
Part No: WS-C6503E-S32P-GE
Price NA
No current market price found — request a quote for Disti pricing.
Specifications
- Manufacturer
- Cisco
- Model
- Cisco WS-C6503E-S32P-GE
- Manufacturer Part No
- WS-C6503E-S32P-GE
- Compatible Country
- Middle East, Africa, Iran, Dubai
- Country of Origin
- California
- Product HS Code
- 85176290
Recommended products
Similar or newer options from the same brand
Cisco WS-C6503E-S32P10GE Cisco 6500 Switch
AED 1,455
Indicative list price — request a quote for Disti pricing.

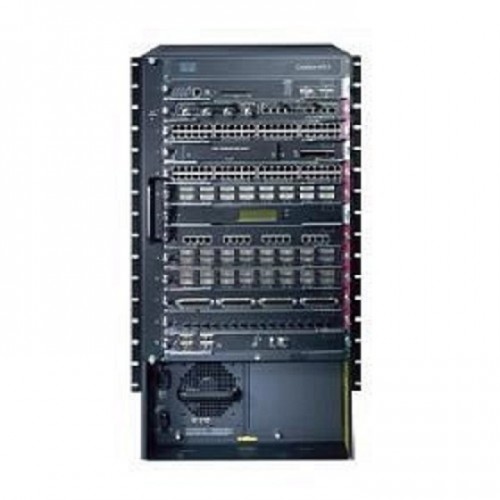

Cisco WS-C6513-S32P-GE Catalyst 6500 Enhanced 9-slot chassis 15RU Switch
Price NA
Market rate · indicative
Cisco WS-C6509E-S32P-GE Cisco 6500 Switch
AED 572
Indicative list price — request a quote for Disti pricing.
Cisco WS-C6503E-S32-GE Cisco 6500 Switch
Price NA
Market rate · indicative
Alternate / cross-brand similar products
AI-matched alternatives based on specifications
Fortinet
FortiGate 140E-POE
AED 2,657
Market rate · indicative
Grandstream
Grandstream GWN780x Managed Network Switch
Price NA
Market rate · indicative
Huawei
Huawei Switch S5732-H24S6Q 20 x GE SFP ports, 4 x 10GE SFP+ ports, 6 x 40GE QSFP+ ports, without power module
AED 599
Market rate · indicative
Linksys
Linksys SE2500 5-Port Gigabit Ethernet Switch
AED 273
Market rate · indicative
Yealink
Yealink RCH80 8-Port Gigabit PoE+ Compliant Managed Network Switch
AED 6,825
Market rate · indicative
NETGEAR
Netgear GS324TP 26-Port PoE Gigabit Ethernet Smart Switch
Price NA
Market rate · indicative
Huawei
Huawei S310-48P4S 48*GE ports - 380W PoE+, 4*GE SFP ports, built-in AC power Switch - 98012384
AED 2,378
Market rate · indicative
NETGEAR
Netgear ProSafe GS110TP 8-Port Gigabit Smart Managed Pro PoE Switch, 53W
AED 428
Market rate · indicative
Product description & technical overview
Cisco Cisco WS-C6503E-S32P-GE
| Specification | Details |
|---|---|
| Chassis Model | Cisco Catalyst 6503-E |
| Chassis Slots | 3 expansion slots |
| Rack Units (RU) | 4U |
| Supervisor Engine | WS-SUP32-GE-3B (includes Policy Feature Card 3B, PFC3B, and MSFC2A) |
| Integrated Ports | 8 x Gigabit Ethernet SFP ports + 1 x 10/100/1000 RJ-45 management port |
| Power Supply | Not included; minimum 950W required; supports redundant AC/DC options |
| Fan Tray | WS-C6503-E-FAN hot-swappable fan tray included |
| Dimensions (H x W x D) | 17.8 x 44.1 x 55.2 cm (7 x 17.37 x 21.75 in) |
| System Bandwidth Capacity | 32 Gbps shared bus backplane with Supervisor Engine 32 |
| Forwarding Performance | Up to 15 Mpps IPv4 services |
| Memory (RAM) | 256 MB installed, upgradeable to 1 GB |
| Supported Protocols/Features | MPLS, IPv6, NAT, QoS, RMON, SNMP, Layer 2 & Layer 3 switching |
| Reliability & Redundancy | Supports redundant power supplies and redundant supervisor engine option |
| Module Compatibility | All classic Catalyst 6500 line cards, CEF 256 line cards (without DFC), various service modules |
| Supported Supervisors | Supervisor Engine 32, Supervisor Engine 720, Supervisor Engine 2T |
