Fanvil

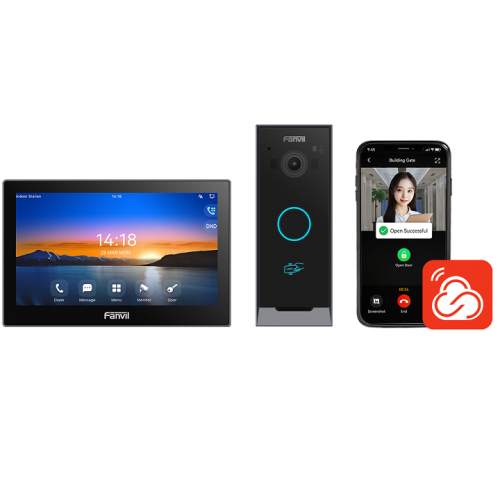

Fanvil VIK-01 Video Intercom Kit
Part No: VIK-01
AED 560
Indicative list price — request a quote for Disti pricing.
Specifications
- Manufacturer
- Fanvil
- Model
- Fanvil VIK-01
- Manufacturer Part No
- VIK-01
- Compatible Country
- Middle East, Africa, Iran, Dubai
- Country of Origin
- China
Recommended products
Similar or newer options from the same brand
Alternate / cross-brand similar products
AI-matched alternatives based on specifications
Product description & technical overview
Fanvil Fanvil VIK-01
Fanvil i504W
Screen 7-inch color capacitive touch screen 1024x600
Body ABS
Speaker 2W
Wi-Fi 2.4G/5G（i504W Supported）
Interface 8xAlarm input, 1xShort circuit output, 1xDoorbell input, 1xRS485(Reserved)
Network 10/100 Mbps adaptive
Power Supply DC 12V / 1A
Power PoE: 3.65-6.64W
Working -10C-50C
Storage -40C-80C
Working Humidity 10%-90%
Size (LWH) 177.38x113.99x22.5mm
Installation Wall-mounted
Fanvil i60
Keyboard 1 Speed-dial Button
Body ABS+PC
Colors Panel: black, Housing: Gunmetal
Sensor 1/2.9-inch，CMOS
Camera 2 Mpx, Support infrared
Viewing Angle 140(FOV) 100(Horizontal) 57(Vertical)
Output video H.264 (Baseline, Main Profile)
Light Sensitivity 0.1Lux
Card Storage 1,0000
Power PoE:1.63-6.93W
Consumption Adapter: 1.51-6.16W
Power Supply DC 12V / 1A
PoE 802.3af Class 3
Working -40C-+70C
Storage -40C-+70C
Size of the Panel 50 x 130 x 30mm
IP / IK Level IP65
Installation Wall-mounted
Rain cover
Download Fanvil VIK-01 Datasheet
