VIGI by Tp-Link
VIGI by TpLink Camera VIGI C540 4mm VIGI 4MP Outdoor Full-Color Pan Tilt Network Camera
Part No: VIGI-C540
AED 289
Indicative list price — request a quote for Disti pricing.
Specifications
- Manufacturer
- VIGI by Tp-Link
- Model
- VIGI by TpLink VIGI C540 4mm
- Manufacturer Part No
- VIGI-C540
- Compatible Country
- Middle East, Africa, Iran, Dubai
- Country of Origin
- China
Recommended products
Similar or newer options from the same brand

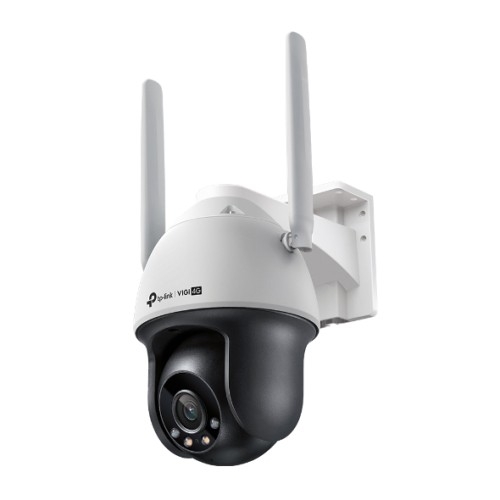

VIGI by TpLink Camera VIGI C540-4G 4mm VIGI 4MP Outdoor Full-Color 4G Pan Tilt Network
Price NA
Market rate · indicative
VIGI by TpLink Camera VIGI C385 4mm VIGI 8MP Outdoor Full-Color Bullet Network
AED 373
Indicative list price — request a quote for Disti pricing.
VIGI by TpLink Camera VIGI C355 4mm VIGI 5MP Outdoor Full-Color Bullet Network
Price NA
Market rate · indicative
VIGI by TpLink VIGI C540-W 4mm 4MP Outdoor Full-Color Wi-Fi Pan Tilt Network Camera
Price NA
Market rate · indicative
Alternate / cross-brand similar products
AI-matched alternatives based on specifications
Product description & technical overview
VIGI by Tp-Link VIGI by TpLink VIGI C540 4mm
| Camera Specifications | |
|---|---|
| Camera | |
| Image Sensor | 1/3” Progressive Scan CMOS |
| Shutter Speed | 1/3 to 1/10000 s |
| Slow Shutter | Yes |
| Minimum Illumination | 0 Lux with IR/White Light |
| Day/Night Mechanism | IR Cut Filter |
| Day/Night Switch | Unified / Scheduled / Auto |
| Digital Noise Reduction | 3D DNR |
| WDR | DWDR |
| Weatherproof | IP66 |
| IR Working Distance | 30 m |
| Pan/Tilt Range | Pan: 0–350, Tilt: 0–120 |
| Digital Zoom | Yes |
| Lens | |
| Type | Fixed Focal Lens |
| Focal Length | 2.8 mm / 4 mm / 6 mm |
| Aperture | F1.6 |
| Lens Mount | M12 |
| Field of View (FOV) | 2.8 mm: H: 102, V: 55, D: 122 4 mm: H: 79, V: 43, D: 93 6 mm: H: 50, V: 27, D: 59 |
| DORI Distance (4 mm) | Detect: 80 m, Observe: 33 m, Recognize: 16 m, Identify: 8 m |
| PTZ | |
| Pan/Tilt Range | Pan: 0–350, Tilt: 0–120 |
| Pan Speed | 1–55/s; Preset: 55/s |
| Tilt Speed | 1–40/s; Preset: 40/s |
| Manual Control Speed | 8–35/s |
| Presets | 300 |
| Patrol Scan | 8 patrols, 8 presets per patrol |
| Power-Off Memory | Yes (Auto Restore) |
| Park Action | Yes (Preset / Patrol Scan) |
| 3D Positioning | Yes |
| Illuminator | |
| IR LED | 2 LEDs, 850nm, 30 m Range |
| White LED | 2 LEDs, 30 m Range |
| Illuminator Control | Auto / Scheduled / Always on / Always off |
| Video | |
| Max. Resolution | 2560 x 1440 |
| Main Stream | Frame Rate (50Hz): 1–25 fps Frame Rate (60Hz): 1–30 fps Resolutions: 2560x1440, 2304x1296, 2048x1280, 1920x1080 |
| Sub-Stream | Frame Rate (50Hz): 1–25 fps Frame Rate (60Hz): 1–30 fps Resolutions: 640x480, 352x288, 320x240 |
| Compression | Main: H.265+/H.265/H.264+/H.264 Sub: H.265/H.264 |
| H.264 Type | Main / High Profile |
| H.265 Type | Main Profile |
| Bit Rate | Main: 256 Kbps–4 Mbps Sub: 64 Kbps–512 Kbps |
| Bit Rate Control | CBR, VBR |
| Image | |
| Settings | Mirror, Brightness, Contrast, Saturation, Sharpness, Exposure, WDR, White Balance, Prevent Overexposure, HLC (Client Software) |
| Enhancement | BLC, 3D DNR, SmartIR |
| Wide Dynamic Range | DWDR |
| SNR | > 52 dB |
| Privacy Mask | Up to 4 Masks |
| ROI | 1 Region |
| OSD Setting | Yes |
| Audio | |
| Two-Way Audio | Yes |
| Audio Input | Yes (Built-in Microphone) |
| Audio Output | Yes (Built-in Speaker) |
| Compression | Yes |
| Sampling Rate | 8 KHz |
| Bit Rate | 64 Kbps (G.711 alaw) |
| Noise Filtering | Yes |
| Network | |
| Protocols | TCP/IP, UDP, ICMP, HTTP, HTTPS, DHCP, DNS, RTSP, NTP, UPnP, SSL/TLS |
| ONVIF/API | Yes |
| Simultaneous Streams | 3 Main & 3 Sub-Streams |
| Web Browser | Chrome 57+, Firefox 52+, Safari 11+, Edge 91+ |
| Cloud | Yes |
| Security | Password Protection, HTTPS, IP Filter, Digest Authentication |
| Alarm & Events | |
| Smart Events | Area Intrusion, Line-Crossing, People Detection, Human Detection |
| Basic Events | Motion Detection, Tampering, Illegal Login |
| Alarm Linkage | SD Recording, Message Push, Audible Warning, White Light Flashing |
| Output Notification | Message Push |
| Interfaces | |
| Network Port | 1x RJ45 10/100M Ethernet |
| Reset Button | Yes |
| MicroSD Slot | Supports up to 256 GB |
| Microphone | Yes (5m radius) |
| Speaker | Yes |
| General | |
| Operating Temp | -30 to 60C |
| Storage Temp | -40 to 60C |
| Humidity | <95% (Non-Condensing) |
| Material | Plastic |
| Protection | IP66 |
| Power Supply | 12V DC + 5%, Max 14W; PoE (802.3af/at, Class 4) |
| Dimensions | 120 x 172 x 198 mm |
| Certifications | CE, RCM, BSMI, VCCI, RoHS, NTRA, KC |
| Included Items | Camera, Quick Start Guide, Waterproof Cable Attachments, Mounting Accessories |
Download VIGI by TpLink VIGI C540 4mm Datasheet
