UBIQUITI
Ubiquiti U5G-Max UniFi 5G Max 5G (3.4 Gbps) Modem For Any UniFi
Part No: U5G-Max
AED 10,500
Indicative list price — request a quote for Disti pricing.
Specifications
- Manufacturer
- UBIQUITI
- Model
- Ubiquiti U5G-Max
- Manufacturer Part No
- U5G-Max
- Compatible Country
- Middle East, Africa, Iran, Dubai
- Country of Origin
- California
Recommended products
Similar or newer options from the same brand
Ubiquiti U5G-Max-Outdoor UniFi 5G Max Outdoor 5G (3.4 Gbps) Modem for UniFi Consoles and Cloud Gateway
Price NA
Market rate · indicative
Ubiquiti UDB Device Bridge Access Point
Price NA
Market rate · indicative

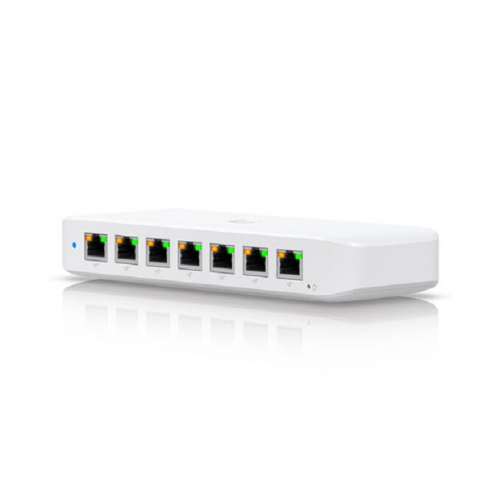

Ubiquiti USW-Ultra-42W PoE Switch
AED 662
Indicative list price — request a quote for Disti pricing.
Ubiquiti UDB-EU Device Bridge Access Point
Price NA
Market rate · indicative
Alternate / cross-brand similar products
AI-matched alternatives based on specifications
Product description & technical overview
UBIQUITI Ubiquiti U5G-Max
| General | |
|---|---|
| Dimensions | 180 x 109 x 33.8 mm (7.1 x 4.3 x 1.3") |
| Networking Interface | (1) 2.5 GbE RJ45 port 5G NR and LTE radio |
| SIM | (1) Nano SIM (1) Nano-SIM or eSIM |
| PoE Interface | (1) PoE input |
| Mounting | Desktop stand, wall, window mount (Included) |
| Tamper Resistance | IK04 |
| Mechanical | |
| Enclosure Material | Polycarbonate, aluminum alloy |
| Mount Material | Polycarbonate, silicone rubber |
| Hardware | |
| Management | Ethernet |
| 5G NR Category | 5G NR |
| 5G NR Frequency Bands | n1, n2, n3, n5, n7, n8, n12, n13, n14, n18, n20, n25, n26, n28, n29, n30, n38, n40, n41, n48, n66, n71, n75, n76, n77, n78, n79 |
| 5G NR Max. TX Power | HPUE power class 2: 26 dBm |
| 4G LTE Frequency Bands | B1, B2, B3, B4, B5, B7, B8, B12, B13, B14, B17, B18, B19, B20, B25, B26, B28, B29, B30, B32, B34, B38, B39, B40, B41, B42, B43, B46, B48, B66, B71 |
| 4G LTE Max. TX Power | HPUE power class 2: 25 dBm |
| 3G UMTS Frequency Bands | B1, B2, B4, B5, B8, B19 |
| Peak Data Speed (5G NSA) | Downlink 3.4 Gbps Uplink 560 Mbps |
| Peak Data Speed (5G SA) | Downlink 1.8 Gbps Uplink 650 Mbps |
| Peak Data Speed (4G LTE) | Downlink 1.6 Gbps Uplink 210 Mbps |
| Antennas | (4) Embedded cellular antennas |
| Max. Power Consumption | 14.5W |
| Power Method | PoE |
| Display | 1.3" touchscreen |
| Buttons | (1) Factory-reset |
| Ambient Operating Temperature | 0 to 40 C (32 to 104 F) |
| Ambient Operating Humidity | 5 to 95% noncondensing |
| NDAA Compliant | ✓ |
| Certifications | FCC, IC, CE, PTCRB, GCF, AT&T, T-Mobile, Verizon |
| Software | |
| Application Requirements | UniFi Network Version 10.0.162 and later |
