Barco

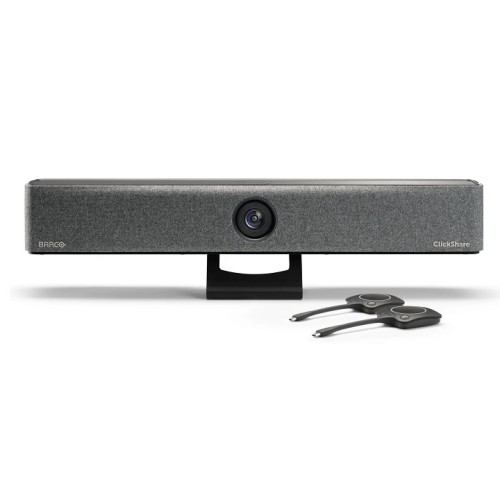

Barco ClickShare Bar Pro EU version with 2 Buttons - R9861633EUB2
Part No: R9861633EUB2
Call for Quote
Indicative price — subject to change. Request a quote for confirmed pricing.
Specifications
- Manufacturer
- Barco
- Model
- Barco ClickShare Bar Pro
- Manufacturer Part No
- R9861633EUB2
- Compatible Country
- Middle East, Africa, Iran, Dubai
Alternate / cross-brand similar products
AI-matched alternatives based on specifications
Product description & technical overview
Barco Barco ClickShare Bar Pro
| General Specifications | |
|---|---|
| Operating System | Windows 10 and higher macOS 11 (Ventura) and higher Android v13 and higher (ClickShare App) iOS 16 and higher (ClickShare App) |
| System Requirements | For smooth experience with Microsoft Teams or Zoom Minimum: Intel i3 dual-core or AMD Ryzen 7 / 8GB RAM / Windows 10 latest build or macOS Mojave latest build Recommended: Intel i5 4-core or AMD Ryzen 9 / 8GB RAM / Windows 11 latest build or macOS latest build |
| Video Outputs | 4K UHD (3840 x 2160) 30Hz or 2x 1080p 30Hz HDMI 1.4b or USB-C DP ALT mode (DisplayPort 1.2) |
| Video Inputs | 4K UHD (3840 x 2160) 30Hz USB-C DP ALT mode (DisplayPort 1.2) |
| Camera | 4K / 1080p / 720p 30fps 3x zoom (ePTZ), 120 FOV |
| Camera AI | Group framing, speaker framing & tracking Composition mode (up to 4 people) |
| Audio Output | 2x 10W full duplex stereo speakers, 8 Ohms impedance |
| Audio Pickup | 6 beamforming MEMS microphones Echo & background noise cancellation Pickup range: max. 4m (13 ft) |
| ClickShare Buttons | 2 |
| ClickShare App | Desktop & Mobile |
| Native Protocols | AirPlay, Google Cast, Miracast |
| Maximum Sources on Screen | 2 |
| Noise Level | Fanless |
| Authentication Protocol | WPA2-PSK (stand-alone mode) WPA2-PSK or IEEE 802.1X (network integration mode via Button) |
| Wireless Transmission | IEEE 802.11 a/g/n/ac & IEEE 802.15.1 |
| Reach | Max. 30m (100 ft) |
| Frequency Band | 2.4 GHz & 5 GHz (DFS supported in select countries) |
| Connections | 1x USB-C 3.1 (DP) to screen 1x USB-C 3.1 (DP) video input 1x USB-A 2.0 1x Ethernet LAN (1 Gbit) 1x USB-C 2.0 (side) |
| Temperature Range | Operating: 0C to +40C (Max 35C at 3000m) Storage: -20C to +60C |
| Humidity | Storage: 0–90% RH (non-condensing) Operation: 0–85% RH (non-condensing) |
| Anti-Theft System | Kensington lock (back & bottom) |
| Certifications | FCC / CE |
| Touch Screen Support & Interactivity | Yes |
| Wireless Conferencing | Via App or Button |
| Local View | Yes |
| Network Connection | LAN & WiFi |
| Management & Reporting | Yes |
| Dimensions (H×W×D) | 98 mm x 640 mm x 101 mm |
| Power Consumption | Operational: 5–20W (65W max) |
| Power Supply | 110/220V AC plug or USB-C (rear) |
Download Barco ClickShare Bar Pro Datasheet
