MARSRIVA
Marsriva MR-SPF3.6K-LP1-TL20E Single Phase IP20 High Frequency Off-Grid Solar Inverter 3.6KW
Part No: MR-SPF3.6K-LP1-TL20E
Price NA
No current market price found — request a quote for Disti pricing.
Specifications
- Manufacturer
- MARSRIVA
- Model
- Marsriva MR-SPF3.6K-LP1-TL20E
- Manufacturer Part No
- MR-SPF3.6K-LP1-TL20E
- Compatible Country
- Middle East, Africa, Iran, Dubai
- Country of Origin
- China
Recommended products
Similar or newer options from the same brand
Marsriva MR-SPF5K-LP1-TL20E Single Phase IP20 High Frequency Off-Grid Solar Inverter 5KW
Price NA
Market rate · indicative
Marsriva MR-SPF6.5K-LP1-TL20E Single Phase IP20 High Frequency Off-Grid Solar Inverter 6.5KW
Price NA
Market rate · indicative
Marsriva MR-SPF12K-LP1-TL20E Single Phase IP20 High Frequency Off-Grid Solar Inverter 12kW
Price NA
Market rate · indicative

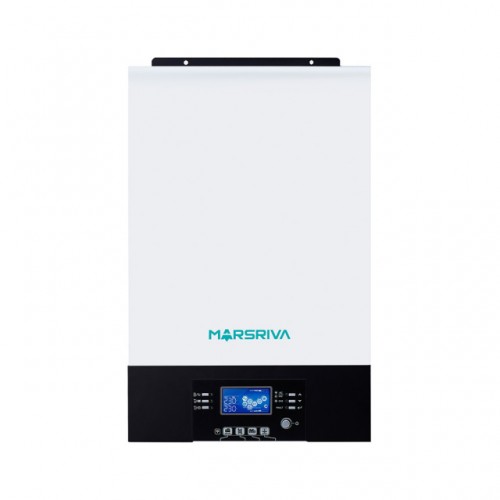

Marsriva MR-SPF6000K Single Phase - IP20 - High Frequency Capacity: 6kW Solar Inverter
AED 379
Indicative list price — request a quote for Disti pricing.
Alternate / cross-brand similar products
AI-matched alternatives based on specifications
Product description & technical overview
MARSRIVA Marsriva MR-SPF3.6K-LP1-TL20E
| Model: MR-SPF3.6K-LP1-TL20E | |
|---|---|
| RATED POWER | 3.6kVA / 3.6kW |
| INPUT | |
| Nominal Voltage | 208 / 220 / 230 / 240VAC |
| Voltage Range | 170 – 264VAC (UPS Mode); 90 – 280VAC (APP/GEN Mode) |
| Frequency Range | 50 / 60Hz + 10Hz (Auto sensing) |
| OUTPUT | |
| Nominal Output Voltage | 208 / 220 / 230 / 240VAC + 5% |
| Output Power | 3.6kW |
| Surge Power | 2 times of rated power |
| Nominal Output Frequency | 50 / 60Hz + 0.1% (Batt. Mode) |
| Efficiency | Max. 92% (Batt. Mode) |
| Transfer Time | 10ms (UPS/APP Mode); 20ms (GEN Mode) |
| BATTERY | |
| Nominal Battery Voltage | 24VDC |
| Battery Voltage Range | 20VDC - 30.5VDC |
| Battery Type | Lead-acid / Lithium / User-defined |
| AC CHARGING & SOLAR CHARGING | |
| Solar Charger Type | MPPT |
| Max. PV Input Power | 5000W |
| Max. PV Input Current | 18A |
| MPPT Voltage Range | 40 – 450VDC (Min. 60VDC without battery connected) |
| Max. PV Open Circuit Voltage | 500VDC |
| Max. Solar Charging Current | 100A |
| Max. AC Charging Current | 100A |
| Max. Hybrid Charging Current | 100A |
| PHYSICAL & COMMUNICATION | |
| Dimension (W x H x D) | 284 x 420 x 104 mm |
| Communication Interface | BMS (485/CAN), Dry-contact, WiFi Module |
| ENVIRONMENT | |
| Humidity | 5% to 95% Relative Humidity (Non-condensing) |
| Operating Temperature | -10C to 50C |
| Storage Temperature | -15C to 60C |
