MSI

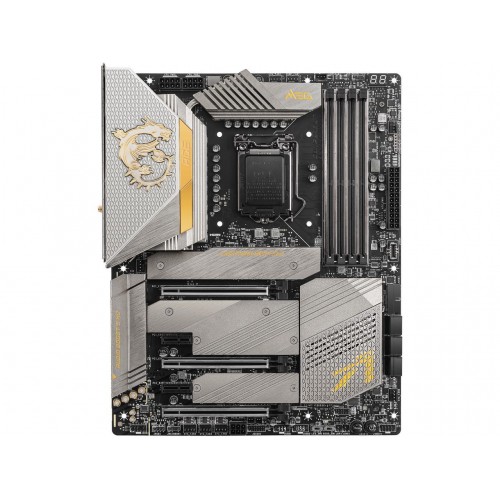

Msi MEG Z590 ACE GOLD EDITION Gaming Motherboard
Part No: MEG-Z590-ACE-GOLD
Call for Quote
Indicative price — subject to change. Request a quote for confirmed pricing.
Specifications
- Manufacturer
- MSI
- Model
- MSI MEG Z590 ACE GOLD EDITION
- Manufacturer Part No
- MEG-Z590-ACE-GOLD
Alternate / cross-brand similar products
AI-matched alternatives based on specifications
Product description & technical overview
MSI MSI MEG Z590 ACE GOLD EDITION
Description
CPU (Max Support) i9
Socket 1200
Chipset Intel® Z590 Chipset
DDR4 Memory 5600(OC)/ 5333(OC)/ 5000(OC)/ 4800(OC)/ 4600(OC)/ 4533(OC)/ 4400(OC)/ 4300(OC)/ 4266(OC)/ 4200(OC)/ 4133(OC)/ 4000(OC)/ 3866(OC)/ 3733(OC)/ 3600(OC)/ 3466(OC)/ 3400(OC)/ 3333(OC)/ 3300(OC)/ 3200(OC)/ 3000(OC) / 2933(JEDEC)/ 2666(JEDEC)/ 2400(JEDEC)/ 2133(JEDEC) MHz
Memory Channel Dual
DIMM Slots 4
Max Memory (GB) 128
PCI-E x16 3
PCI-E x1 2
SATAIII 6
M.2 Slot 4
RAID 0/1/5/10
LAN 1x Intel® I225-V 2.5G LAN
WiFi & Bluetooth Intel® Wi-Fi 6E AX210
Thunderbolt 4 2x USB Type-C up to 40G, Charging support up to 5V/3A, 15W, 2x Mini DisplayPort input ports
USB 3.2 ports (Front) 1(Gen2, Type C), 2(Gen1, Type A)
USB 3.2 ports (Rear) 2(Gen2, Type A), 4(Gen1, Type A)
USB 2.0 ports (Front) 4
USB 2.0 ports (Rear) 2
Audio ports (Rear) 5+ Optical S/PDIF (Realtek® ALC4082 Codec + ESS SABRE9018Q2C combo DAC)
HDMI 1
DirectX 12
SLI Y
CrossFire Y
Operating System Support for Windows® 10 64-bit
Form Factor ATX
