DAHUA
Dahua IPC-HFW2841T-ZS 8MP IR Vari-focal Bullet WizSense Network Camera
Part No: IPC-HFW2841T-ZS
Price NA
No current market price found — request a quote for Disti pricing.
Specifications
- Manufacturer
- DAHUA
- Model
- Dahua IPC-HFW2841T-ZS
- Manufacturer Part No
- IPC-HFW2841T-ZS
- Compatible Country
- Middle East, Africa, Iran, Dubai
- Country of Origin
- China
Recommended products
Similar or newer options from the same brand
Dahua IPC-HDBW2831R-ZS-S2 8MP Lite IR Vari-focal Dome Network Camera
AED 309
Indicative list price — request a quote for Disti pricing.
Dahua IPC-HDBW2841E-S 8MP IR Fixed-focal Dome WizSense Network Camera
AED 609
Indicative list price — request a quote for Disti pricing.
Dahua IPC-HDBW2841E-S 8MP IR Fixed-focal Dome WizSense Network Camera - Black
AED 309
Indicative list price — request a quote for Disti pricing.

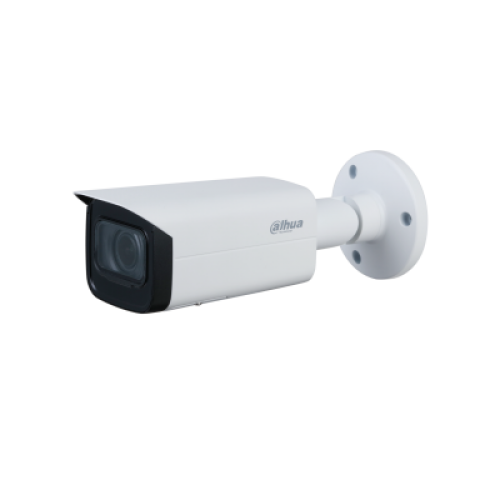

Dahua (DH-IPC-HFW3241TP-ZS) 2MP IR Vari-focal Bullet WizSense Network Camera
Price NA
Market rate · indicative
Alternate / cross-brand similar products
AI-matched alternatives based on specifications
Product description & technical overview
DAHUA Dahua IPC-HFW2841T-ZS
| Technical Specifications | |
|---|---|
| Camera | |
| Image Sensor | 1/2.7" CMOS |
| Maximum Resolution | 3840 x 2160 (8 MP / 4K) |
| ROM | 128 MB |
| RAM | 256 MB |
| Scanning System | Progressive |
| Electronic Shutter Speed | Auto/Manual, 1/3 s–1/100,000 s |
| Minimum Illumination | 0.008 lux F1.5 (Color, 30 IRE) 0.0008 lux F1.5 (B/W, 30 IRE) 0 lux (IR Illuminator On) |
| S/N Ratio | >56 dB |
| IR Illumination Distance | Up to 60 m (196.85 ft) |
| Illuminator Control | Auto / Manual |
| IR LEDs | 4 |
| Pan / Tilt / Rotation | Pan: 0–360 Tilt: 0–90 Rotation: 0–360 |
| Lens | |
| Lens Type | Motorized Vari-focal |
| Lens Mount | 14 |
| Focal Length | 2.7–13.5 mm |
| Maximum Aperture | F1.5 |
| Field of View | H: 113–31; V: 58–18; D: 138–36 |
| Iris Control | Fixed |
| Close Focus Distance | 0.8 m (2.62 ft) |
| DORI Distance | |
| Wide (W) | Detect: 85.3 m (279.86 ft) Observe: 34.1 m (111.88 ft) Recognize: 17.1 m (56.10 ft) Identify: 8.5 m (27.89 ft) |
| Tele (T) | Detect: 280.0 m (918.64 ft) Observe: 112.0 m (367.45 ft) Recognize: 56.0 m (183.73 ft) Identify: 28.0 m (97.86 ft) |
| DORI Standard | EN-62676-4 (Detect, Observe, Recognize, Identify). Values are for viewing capability and do not represent intelligent function distances. |
| Intelligence | |
| IVS (Perimeter Protection) | Intrusion, Tripwire (Human & Vehicle Classification) |
| Smart Search | Works with Smart NVR for intelligent search, event extraction and event video merging. |
| Video | |
| Video Compression | H.265, H.264, H.264H, H.264B, MJPEG (Sub Stream Only) |
| Smart Codec | Smart H.265+; Smart H.264+ |
| Video Frame Rate | Main Stream: 3840 x 2160 1–20 fps / 2688 x 1520 1–25/30 fps Sub Stream: 704 x 576 1–25 fps / 704 x 480 1–30 fps |
| Stream Capability | Dual Stream |
| Supported Resolutions | 3840 x 2160, 3072 x 2048, 3072 x 1728, 2880 x 1620, 2688 x 1520, 3MP, 2304 x 1296, 1080p, 1.3MP, 720p, D1, VGA, CIF |
| Bit Rate Control | CBR / VBR |
| Video Bit Rate | H.264: 32 kbps–8192 kbps H.265: 12 kbps–8192 kbps |
| Day/Night | Auto (ICR) / Color / B/W |
| BLC | Yes |
| HLC | Yes |
| WDR | 120 dB |
| White Balance | Auto, Natural, Street Lamp, Outdoor, Manual, Regional Custom |
| Gain Control | Auto / Manual |
| Noise Reduction | 3D NR |
| Motion Detection | Off/On (4 Rectangular Areas) |
| Region of Interest (ROI) | Yes (4 Areas) |
| Smart Illumination | Yes |
| Image Rotation | 0, 90, 180, 270 (90/270 supported at 2688 x 1520 or lower) |
| Mirror | Yes |
| Privacy Masking | 4 Areas |
| Audio | |
| Built-in Microphone | Yes |
| Audio Compression | G.711a, G.711Mu, PCM, G.726 |
| Alarm | |
| Alarm Events | No SD Card, SD Card Full/Error, Network Disconnection, IP Conflict, Illegal Access, Motion Detection, Video Tampering, Tripwire, Intrusion, Audio Detection, Voltage Detection, Defocus Detection, External Alarm (ZAS Only), SMD, Security Exception |
| Network | |
| Network Port | RJ-45 (10/100 Base-T) |
| SDK / API | Yes |
| Network Protocols | IPv4, IPv6, HTTP, HTTPS, TCP, UDP, ARP, RTP, RTSP, RTCP, RTMP, SMTP, FTP, SFTP, DHCP, DNS, DDNS, QoS, UPnP, NTP, Multicast, ICMP, IGMP, NFS, PPPoE, Bonjour, P2P |
| Interoperability | ONVIF (Profile S/G/T), CGI |
| Users / Hosts | 20 (48 Mbps Total Bandwidth) |
| Storage | FTP, SFTP, Micro SD Card (Up to 256 GB), NAS |
| Supported Browsers | IE, Chrome, Firefox |
| Management Software | SmartPSS Lite, DSS, DMSS |
| Mobile Client | iOS, Android |
| Security | Trusted Execution, Trusted Boot, Trusted Upgrade, Digest Authentication, WSSE, HTTPS, 802.1X, X.509 Certificate Import, Account Lockout, Syslog, IP/MAC Filtering |
| Certification | |
| Certifications | CE-LVD (EN62368-1), CE-EMC (2014/30/EU), FCC Part 15 Subpart B, UL62368-1 & CAN/CSA C22.2 No.62368-1-14 |
| Ports | |
| Audio Input | 1 x RCA (ZAS Only) |
| Audio Output | 1 x RCA (ZAS Only) |
| Alarm Input | 1 Channel, 5 mA, 3–5 VDC (ZAS Only) |
| Alarm Output | 1 Channel, 300 mA, 12 VDC (ZAS Only) |
| Power | |
| Power Supply | 12 VDC / PoE (IEEE 802.3af) |
| Power Consumption | ZS: Basic: 2.7 W (12 VDC), 3.6 W (PoE); Max: 8.3 W (12 VDC), 9.6 W (PoE) ZAS: Basic: 2.7 W (12 VDC), 3.6 W (PoE); Max: 8.4 W (12 VDC), 9.7 W (PoE) |
| Environment | |
| Operating Temperature | –30C to +60C (–22F to +140F) |
| Operating Humidity | <95% |
| Storage Temperature | –40C to +60C (–40F to +140F) |
| Storage Humidity | <95% |
| Protection | IP67; IK10 (Optional) |
| Physical | |
| Casing Material | Metal |
| Dimensions (L x W x H) | 238.5 x 90.7 x 90.7 mm (9.39 x 3.57 x 3.57 in) |
| Net Weight | ZS: 0.74 kg (1.63 lb) ZAS: 0.77 kg (1.70 lb) |
| Gross Weight | ZS: 0.98 kg (2.16 lb) ZAS: 1.01 kg (2.23 lb) |
