Hytera

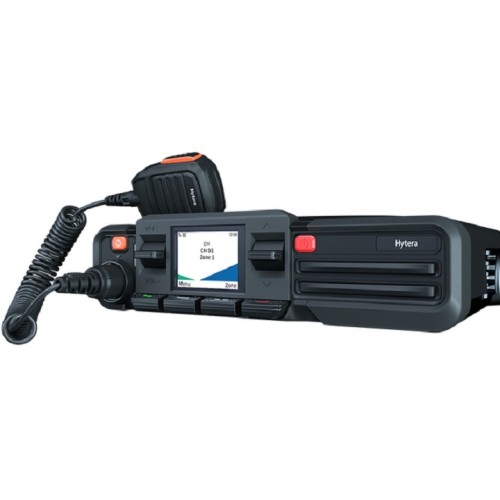

Hytera HM689-H Professional DMR Mobile Two-way Radio
Part No: HM689-H
Price NA
No current market price found — request a quote for Disti pricing.
Specifications
- Manufacturer
- Hytera
- Model
- Hytera HM689-H
- Manufacturer Part No
- HM689-H
- Compatible Country
- Middle East, Africa, Iran, Dubai
- Country of Origin
- China
Recommended products
Similar or newer options from the same brand
Hytera HM689 Professional DMR Mobile Two-way Radio
Price NA
Market rate · indicative
Hytera HP789 Professional DMR Portable Two-way Radio
AED 735
Indicative list price — request a quote for Disti pricing.
Hytera BP519-VHF Next Generation Two-way Radio
Price NA
Market rate · indicative
Hytera HP609 Slim and Professional Digital Two-way Radio
Price NA
Market rate · indicative
Alternate / cross-brand similar products
AI-matched alternatives based on specifications
KENWOOD
Kenwood TK-3308 16-channel handheld two-way radio Walkie Talkie
Price NA
Market rate · indicative
IRADIO
Iradio CP-8800 long range rugged handheld two way radio
Price NA
Market rate · indicative
Fanvil
Fanvil W712 RoIP Gateway
Price NA
Market rate · indicative
ZKTeco
ZKTeco ProID40 EM Waterproof Reader
Price NA
Market rate · indicative
ZKTeco
ZKTeco ProID20 EM Waterproof Reader
AED 708
Market rate · indicative
BAOFENG
Baofeng UV-82 Two Way Radios
AED 105
Market rate · indicative
IRADIO
Iradio DP-8800 portable digital dmr radios 2 timeslot radios
Price NA
Market rate · indicative
Product description & technical overview
Hytera Hytera HM689-H
| Specification | Details |
|---|---|
| Frequency Range | 400–470 MHz |
| Channel Capacity | 512 |
| Zone Capacity | 16 |
| Operating Voltage | 13.6V +15% DC |
| Current Drain (Standby) | <0.5 A |
| Current Drain (Transmit) | <2.0 A |
| Current Drain (Receive) | 5W: <4 A; 25W: <8 A; 45W: <12 A |
| Dimensions (H x W x D) | 164 x 159 x 42 mm |
| Weight | 1150 g |
| Display | 1.45 inch, 4-line |
| Receiver Sensitivity | Analogue: 0.18 V (12dB SINAD), 0.16 µV typical; Digital: 0.18 µV / BER 5% |
| Selectivity | TIA-603: 65 dB 12.5kHz / 75 dB 20/25kHz; ETSI: 50 dB 12.5kHz / 70 dB 20/25kHz |
| Intermodulation | TIA-603: 75 dB; ETSI: 70 dB |
| Spurious Response Rejection | TIA-603: 75 dB; ETSI: 70 dB |
| Blocking | TIA-603: 90 dB; ETSI: 84 dB |
| Hum and Noise | 40 dB 12.5kHz; 43 dB 20kHz; 45 dB 25kHz |
| Audio Power Output | Internal (20): 3W; External (8): 6W |
| Max Audio Power Output | Internal (20): 7.5W; External (8): 20W |
| Audio Distortion | <3% |
| Audio Response | +1 to -3 dB |
| Conducted Spurious Emission | < -57 dBm |
| RF Power Output | Low: 5–25 W; High: 5–45 W |
| FM Modulation | 11K0F3E 12.5kHz; 14K0F3E 20kHz; 16K0F3E 25kHz |
| 4FSK Digital Modulation | 7K60FXD (data); 7K60FXW (data + voice) |
| Emission | -36 dBm <1 GHz; 30 dBm >1 GHz |
| Modulation Limiting | +2.5 kHz 12.5kHz; +4.0 kHz 20kHz; +5.0 kHz 25kHz |
| Adjacent Channel Power | 60 dB 12.5kHz; 70 dB 20/25kHz |
| Digital Vocoder | AMBE+2 |
| Operating Temperature | -30C to +60C |
| Storage Temperature | -40C to +85C |
| Dust & Water Protection | IP54 |
| GNSS | GPS, GPS+GLONASS, GPS+BDS |
| TTFF (Cold Start) | < 1 minute |
| TTFF (Hot Start) | < 10 seconds |
| Horizontal Accuracy | < 5 meters |
