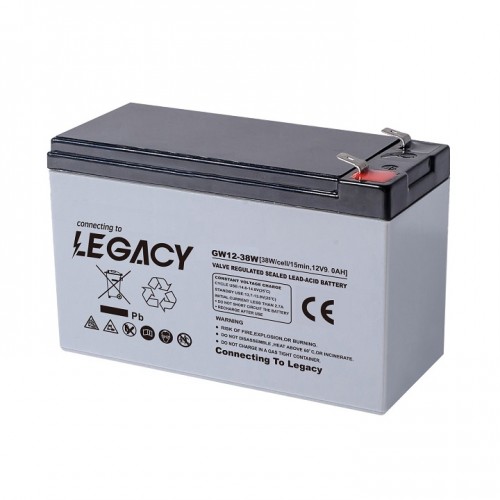

LEGACY GW12-38W - 12V 9AH VLRA High Rate Discharge Battery
Part No: GW12-38W-12V-9AH
Price NA
No current market price found — request a quote for Disti pricing.
Specifications
- Manufacturer
- LEGACY
- Model
- LEGACY GW12-38W - 12V 9AH
- Manufacturer Part No
- GW12-38W-12V-9AH
- Compatible Country
- Middle East, Africa, Iran, Dubai
Alternate / cross-brand similar products
AI-matched alternatives based on specifications
Product description & technical overview
LEGACY LEGACY GW12-38W - 12V 9AH
Length 151+1mm (5.94 inches)
Width 65+1mm (2.56 inches)
Height 94+1mm (3.70 inches)
Total Height 100+1mm (3.94 inches)
Weight Approx. 2.70Kg (Tolerance±5%)
Terminal Default F2
Container Material A.B.S. UL94-HB, <UL94-V0 Optional>
Application UPS/EPS, Electric Tools, Toys, Medical, Wheelchair and Security System etc.
Features
Structure: Compact design of shorter internal connectors among cells for lower I.R. Plate: Pasted flat type with patent high rate formula of AM supports stable performance during high current discharge.
Separator: Improved AGM seperator increases deep cycle life.
Safety Valve: Flame arrester/filter is equipped with safety valve system. Design and manufacture with DIN standards by Legacy team, for heavy load discharge applications
Cell Per Unit 6
Voltage Per Unit 12V
Nominal Capacity 38W15min-rate to 1.67V per cell 25C
Internal Resistance <18.0 mΩ(Full Charge Condition 25C)
Max. Discharge Current 90A (5 sec)
Max. Charging Current 2.7A
Short Circuit Current 450A
Reference Capacity C10: 8.5Ah C20: 9.0Ah
Standby Use Voltage 13.70 V-13.90 V 25C Temperature Compensation: -3mV/C/Cell
Cycle Use Voltage 14.60 V-14.80 V 25C Temperature Compensation: -4mV/C/Cell
Normal Operating Temperature Range 25C+5C
Operating Temperature Range Discharge and Storage : -20C-60C
Charge: 0C-50C
Download LEGACY GW12-38W - 12V 9AH Datasheet
