Tp-Link
Tp-Link DS-LGPA-08 DeltaStream Chassis Optical Line Terminal 8 GPON Service Board
Part No: DS-LGPA-08
Price NA
No current market price found — request a quote for Disti pricing.
Specifications
- Manufacturer
- Tp-Link
- Model
- Tp-Link DS-LGPA-08
- Manufacturer Part No
- DS-LGPA-08
- Compatible Country
- Middle East, Africa, Iran, Dubai
- Country of Origin
- China
Recommended products
Similar or newer options from the same brand

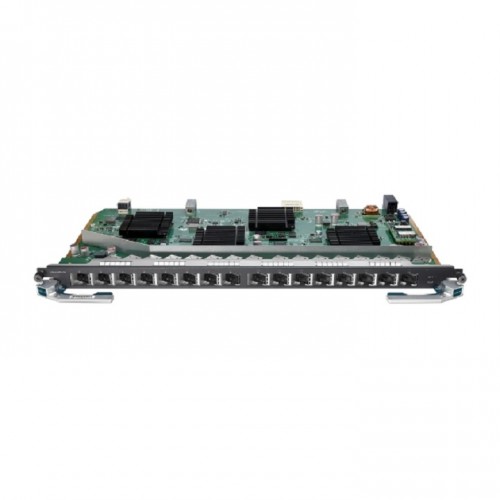

Tp-Link DS-LGPA-16 DeltaStream Chassis Optical Line Terminal 16 GPON Service Board
Price NA
Market rate · indicative
Tp-Link DS-PSUA DeltaStream Chassis Optical Line Terminal Power Supply Unit
Price NA
Market rate · indicative
Tp-Link DS-P8000-X2 DeltaStream Chassis Optical Line Terminal-X2
AED 40
Indicative list price — request a quote for Disti pricing.
Tp-Link DS-P8000-X7 DeltaStream Chassis Optical Line Terminal-X7
AED 462
Indicative list price — request a quote for Disti pricing.
Alternate / cross-brand similar products
AI-matched alternatives based on specifications
Product description & technical overview
Tp-Link Tp-Link DS-LGPA-08
HARDWARE FEATURES
Interface
- 8× GPON Ports
Dimensions ( W x D x H )
- 15.4 x 10.1 x 0.9 in (390.8mm x 257.5mm x 22.5 mm)
Power Consumption
- Max. 30W
Power Supply
- Power Supplies: via DS-PSUA Module
- DC: -38.4V~-57.6V
Hot Swappable
- Yes
SOFTWARE FEATURES
DHCP
- DHCP Server
- DHCP Relay
Security
- ACL
- 802.1x Authentication
OMCI
- Standard OMCI Management Supported
ONU Authentication
- ONU Auto Authentication
ONU Security
- Rouge ONU Detection and Isolation
Multi-Service
- Multi-Service Traffic Identify and Rate Limit
QOS
- IEEE 802.1p/DSCP QOS
- Voice VLAN
- Auto VoIP
Routing
- Static Routing
Multicast
- IGMP Snooping
- MLD Snooping
Centralized Management
- Large-Scale Devices Management
- OLT Batch Configure, Upgrade, Reboot
- Multi-Site Management
- Intelligent Network Monitoring
- Real-time Network Overview
OTHERS
Certification
- CE,FCC
Package Contents
- GPON Service Board DS-LGPA-08
Environment
- Operating Temperature: 0C–50C (32F–122F)
- Storage Temperature: -40C–70C (-40F–158F)
- Operating Humidity: 10%–90% non-condensing
- Storage Humidity: 5%–90% non-condensing
GPON PORT ATTRIBUTE
Transmission distance
- 20 km
Data rate
- GPON
- Downstream: 2.5 Gbps, Upstream: 1.25 Gbps
- Per Port
Wavelength
- Tx: 1490 nm
- Rx: 1310 nm
Max. Splitting Ratio
- 1:128 for GPON
