Hikvision
Hikvision DS-2CD2T43G2-2I 2.8MM 4 MP AcuSense Fixed Bullet Network Camera
Part No: DS-2CD2T43G2-2I
Price NA
No current market price found — request a quote for Disti pricing.
Specifications
- Manufacturer
- Hikvision
- Model
- Hikvision DS-2CD2T43G2-2I 2.8MM
- Manufacturer Part No
- DS-2CD2T43G2-2I
- Compatible Country
- Middle East, Africa, Iran, Dubai
- Country of Origin
- China
Recommended products
Similar or newer options from the same brand

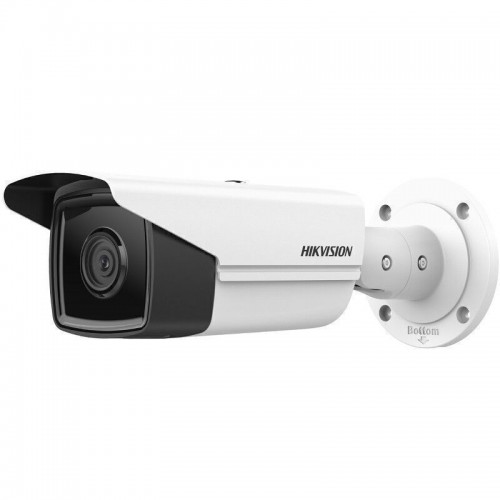

Hikvision DS-2CD2T43G2-2I(4mm) 2 MP AcuSense Fixed Bullet Network Camera
AED 227
Indicative list price — request a quote for Disti pricing.
Hikvision DS-2CD2T43G2-2I(6mm) 2 MP AcuSense Fixed Bullet Network Camera
Price NA
Market rate · indicative

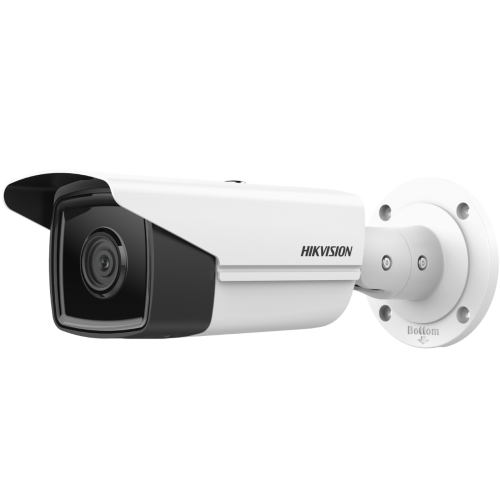

Hikvision (DS-2CD2T43G2-2I(4mm) 4 MP WDR Fixed Bullet Network Camera
AED 330
Indicative list price — request a quote for Disti pricing.

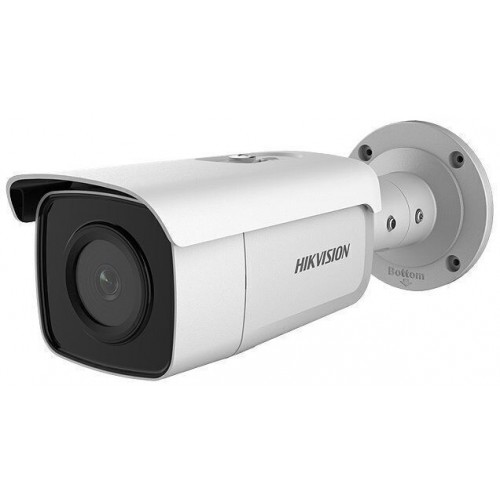

Hikvision (DS-2CD2T26G2-2I(2.8mm) 2 MP AcuSense Fixed Bullet Network Camera
Price NA
Market rate · indicative
Alternate / cross-brand similar products
AI-matched alternatives based on specifications
Product description & technical overview
Hikvision Hikvision DS-2CD2T43G2-2I 2.8MM
| Technical Specifications | |
|---|---|
| Camera | |
| Image Sensor | 1/3″ Progressive Scan CMOS |
| Maximum Resolution | 2688 x 1520 |
| Minimum Illumination | Color: 0.005 Lux (F1.6, AGC ON), 0 Lux with IR On |
| Shutter Time | 1/3 s to 1/100,000 s |
| Day/Night | ICR Cut Filter |
| Angle Adjustment | Pan: 0–360 Tilt: 0–90 Rotation: 0–360 |
| Lens | |
| Lens Type | Fixed Focal Lens (2.8 mm / 4 mm / 6 mm Optional) |
| Field of View | 2.8 mm: H: 103, V: 55, D: 122 4 mm: H: 84, V: 45, D: 100 6 mm: H: 52, V: 28, D: 61 |
| Lens Mount | M12 |
| Iris Type | Fixed |
| Aperture | F1.6 |
| DORI Distance | |
| 2.8 mm Lens | Detect: 67 m Observe: 26 m Recognize: 13 m Identify: 6 m |
| 4 mm Lens | Detect: 80 m Observe: 31 m Recognize: 16 m Identify: 8 m |
| 6 mm Lens | Detect: 120 m Observe: 47 m Recognize: 24 m Identify: 12 m |
| Illuminator | |
| Supplement Light Type | IR |
| Supplement Light Range | -2I: Up to 60 m -4I: Up to 80 m |
| Smart Supplement Light | Yes |
| IR Wavelength | 850 nm |
| Video | |
| Main Stream | 50 Hz: 25 fps (2688 x 1520, 1920 x 1080, 1280 x 720) 60 Hz: 30 fps (2688 x 1520, 1920 x 1080, 1280 x 720) |
| Sub Stream | 50 Hz: 25 fps (1280 x 720, 640 x 480, 640 x 360) 60 Hz: 30 fps (1280 x 720, 640 x 480, 640 x 360) |
| Third Stream | 50 Hz: 10 fps (1920 x 1080, 1280 x 720, 640 x 480, 640 x 360) 60 Hz: 10 fps (1920 x 1080, 1280 x 720, 640 x 480, 640 x 360) |
| Video Compression | Main: H.265/H.264/H.264+/H.265+ Sub: H.265/H.264/MJPEG Third: H.265/H.264 |
| Video Bit Rate | 32 Kbps – 8 Mbps |
| H.264 Profile | Baseline / Main / High Profile |
| H.265 Profile | Main Profile |
| Bit Rate Control | CBR / VBR |
| Scalable Video Coding (SVC) | Yes |
| Region of Interest (ROI) | 1 Fixed Region for Main Stream and Sub Stream |
| Network | |
| Protocols | TCP/IP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, NTP, UPnP, SMTP, IGMP, 802.1X, QoS, IPv6, UDP, Bonjour, SSL/TLS, PPPoE, WebSocket, WebSockets |
| Simultaneous Live View | Up to 6 Channels |
| API | ONVIF (Profile S, G), ISAPI, SDK |
| User / Host | Up to 32 Users (Administrator, Operator, User) |
| Security | Password Protection, HTTPS Encryption, IP Address Filter, Security Audit Log, TLS 1.1/1.2, WSSE, Digest Authentication |
| Network Storage | NAS (NFS, SMB/CIFS), ANR |
| Client Software | iVMS-4200, Hik-Connect, Hik-Central |
| Web Browser | IE 10/11 (Plug-in), Chrome 57+, Firefox 52+ (Plug-in Free) |
| Image | |
| Image Parameter Switch | Yes |
| Image Settings | Rotate, Mirror, Privacy Mask, Saturation, Brightness, Contrast, Sharpness, Gain, White Balance |
| Day/Night Switch | Day / Night / Auto / Schedule |
| Wide Dynamic Range | 120 dB |
| SNR | >52 dB |
| Image Enhancement | BLC, HLC, 3D DNR |
| Interface | |
| Ethernet Interface | 1 x RJ45 10/100 Mbps Self-adaptive Port |
| On-board Storage | MicroSD Card Slot (Up to 512 GB) |
| Reset Key | Yes |
| Events | |
| Basic Events | Motion Detection (Human & Vehicle Classification), Video Tampering Alarm, Exception |
| Smart Events | Line Crossing Detection, Intrusion Detection, Human & Vehicle Classification, Face Detection |
| Linkage | Upload to FTP/MicroSD/NAS, Notify Surveillance Center, Trigger Recording, Trigger Capture, Send Email |
| General | |
| Power | -2I: 12 VDC +25%, 0.71 A, Max. 8.5 W PoE (802.3af): Max. 9.5 W -4I: 12 VDC +25%, 1.0 A, Max. 11.5 W PoE (802.3af Class 3): Max. 12.5 W |
| Material | Aluminum Alloy Body; Plastic Sun Shield & IR Cover |
| Dimensions | 105 x 299.7 mm (4.1″ x 11.8″) |
| Package Dimensions | 386 x 156 x 155 mm (15.2″ x 6.2″ x 6.2″) |
| Weight | Approx. 1070 g (2.4 lb) |
| Package Weight | Approx. 1589 g (3.5 lb) |
| Storage Conditions | -30C to +60C, <95% RH (Non-condensing) |
| Operating Conditions | -30C to +60C, <95% RH (Non-condensing) |
| Languages | 33 Languages Supported |
| General Functions | Anti-flicker, Heartbeat, Password Reset via Email, Pixel Counter |
| Approvals | |
| EMC | FCC, CE-EMC, RCM, IC, KC |
| Safety | UL, CB, CE-LVD, BIS, LOA |
| Environmental | CE-RoHS, WEEE, REACH |
| Protection | IP67 (IEC 60529-2013) |
Download Hikvision DS-2CD2T43G2-2I 2.8MM Datasheet
