Ezviz
Ezviz HG2 400 Smart Home Sliding Gate Opener - CS-HG2-R100-40HL
Part No: CS-HG2-R100-40HL
Price NA
No current market price found — request a quote for Disti pricing.
Specifications
- Manufacturer
- Ezviz
- Model
- Ezviz HG2 400
- Manufacturer Part No
- CS-HG2-R100-40HL
- Compatible Country
- Middle East, Africa, Iran, Dubai
- Country of Origin
- China
Recommended products
Similar or newer options from the same brand
R400
Ezviz CS-HP7-R400-1W2TFD-PRO 4K Palm Vein Video Doorphone - 318500253
Price NA
Market rate · indicative
R400
Ezviz HP7 Pro 4K Palm Vein Video Doorphone - CS-HP7-R400-1W2TFD (Pro)
Price NA
Market rate · indicative
R200

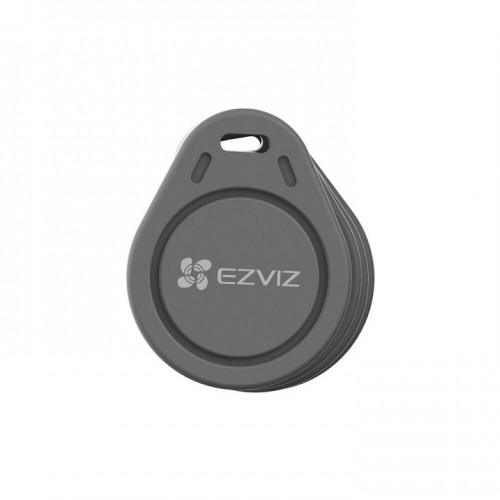

EZVIZ CS-DL-IC-CPU-R200 (4pcs) - 310500519
Price NA
Market rate · indicative
R200
Ezviz H6c G1 4K Next-Generation Pan & Tilt Wi-Fi Smart Home Indoor Camera - CS-H6c-R200-8H8WFL
Price NA
Market rate · indicative
Alternate / cross-brand similar products
AI-matched alternatives based on specifications
Product description & technical overview
Ezviz Ezviz HG2 400
| Specification | Details |
|---|---|
| Power Supply | 24V DC |
| Input Power | 230V AC, 50Hz (primary); 14.6V DC (backup battery) |
| Maximum Power | 220W |
| Rated Operating Time | 15 minutes |
| Lock Power Output | 12V DC, 1.5A |
| Photocell Input | Up to 2 pairs, non-polarized |
| Continuous Open / Stop / Close Input | Normally open dry contact, supports multiple inputs |
| Open Input | Normally open dry contact, supports multiple inputs |
| Stop Input | Normally closed dry contact by default, configurable to normally open via app |
| Alarm Light Output | 10–18V DC, 700 mA |
| Light Output | 230V AC, Max. 100 W |
| Operating Conditions | -30C to +60C, <95% RH (non-condensing) |
| Size | 249 (L) x 221 (W) x 244 (H) mm |
| Weight | 7000 g (gate opener body) |
| Protection Rating | IP55 |
| Remote Controllers | Supports up to 8 |
| Alarm Light Connection | Wired connection with gate opener (2-wire), digital signal transmission |
| Alarm Light Operating Conditions | -30C to 55C, Humidity <95% (non-condensing) |
| Alarm Light Protection Rating | IP55 |
| Wi-Fi HaLow Repeater Power Supply | AC 110–240V |
| Wi-Fi Standard | Wi-Fi 6: IEEE 802.11b/g/a/n/ac/ax Wi-Fi HaLow: IEEE 802.11ah |
| Wi-Fi Bands | 2.4GHz / 5GHz Wi-Fi 6 HaLow |
| Photocell Content | 1 TX transmitter and 1 RX receiver |
| Photocell Power Supply | 12V DC |
| Photocell Maximum Power | 0.8W (TX & RX combined) |
| Photocell Input | 1 normally closed dry contact output 1 normally open dry contact output |
| Photocell Distance | Up to 10 meters |
| Photocell Operating Conditions | -30C to 60C, <95% RH (non-condensing) |
| Photocell Protection Rating | IP55 |
| In the Box | Sliding Gate Opener Mounting Base Screw Kit Shim x 2 Alarm Light Wall Bracket Drill Template Screw Kit x 4 Gear Rack x 12 Photocellule x 2 Screw Kit Wireless Repeater Remote Controller x 2 Pin Backup Battery Left Limit Sheet Metal Right Limit Sheet Metal Regulatory Information x 4 Quick Start Guide |
| Certifications | CE / REACH / WEEE / RoHS |
Download Ezviz HG2 400 Datasheet
