Huawei
Huawei S220-8T4S eKitEngine Network switch - 98012551
Part No: 98012551
AED 366
Indicative list price — request a quote for Disti pricing.
Specifications
- Manufacturer
- Huawei
- Model
- Huawei S220-8T4S
- Manufacturer Part No
- 98012551
- Compatible Country
- Middle East, Africa, Iran, Dubai
- Country of Origin
- China
Recommended products
Similar or newer options from the same brand
Huawei S220-8P4S 8x10/100/1000BASE-T ports Switch - 98012552
Price NA
Market rate · indicative
Huawei S220-48P4X 48*GE ports, 380W PoE+, 4*10GE SFP+ ports, built-in AC power Switch - 98012378
AED 2,088
Indicative list price — request a quote for Disti pricing.
Huawei S220-24T4X Switch - 98012375
AED 1,578
Indicative list price — request a quote for Disti pricing.
Huawei S220-24P4X 24*GE ports - 400W PoE+, 4*10GE SFP+ ports, built-in AC power Switch - 98012376
AED 1,435
Indicative list price — request a quote for Disti pricing.
Alternate / cross-brand similar products
AI-matched alternatives based on specifications
TAPO
Tapo S220 Smart Light Switch, 2-Gang 1-Way
Price NA
Market rate · indicative
JABRA
Jabra 180-09 LINK 180 switch
Price NA
Market rate · indicative
JABRA
Jabra 180-09 LINK 180 switch
AED 1,029
Market rate · indicative
UGreen
UGreen CM662 2 In 4 Out USB 3.0 Switch 2 Computers Sharing USB C & A Devices - 15705
AED 7
Market rate · indicative
MikroTik
Mikrotik RBPOE PoE injector, for 10/100Mbps
AED 198
Market rate · indicative
NETGEAR
Netgear AV Line M4250-40G8XF-PoE+ 48 Port Switch GSM4248PX
Price NA
Market rate · indicative
UBIQUITI
Ubiquiti US-24 Standard 24 Layer 2 Switch
Price NA
Market rate · indicative
UBIQUITI

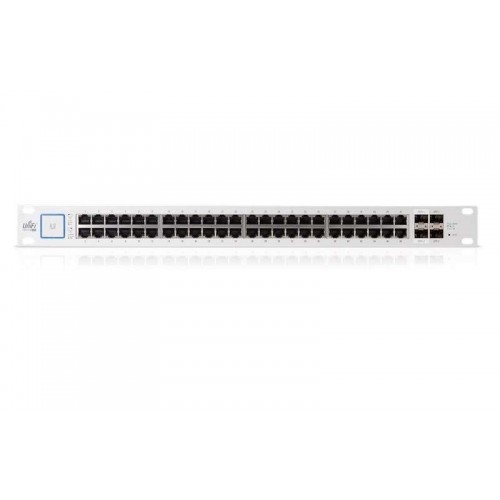

Ubiquiti US-48-500W Standard 48 PoE Networks UniFi Switch
Price NA
Market rate · indicative
Product description & technical overview
Huawei Huawei S220-8T4S
Dimensions(H x W x D) Basic dimensions (excluding the parts protruding
from the body): 43.6 mm x 250.0 mm x 180.0 mm (1.72 in. x 9.84 in. x 7.09 in.)
Maximum dimensions (the depth is the distance from ports on the front panel to the parts protruding from the rear panel): 43.6 mm x 250.0 mm x 187.0 mm (1.72 in. x 9.84 in. x 7.36 in.)
Chassis height [U] 1 U
Chassis material Metal
Typical power consumption [W] 15.95 W
Typical heat dissipation [BTU/hour] 54.42 BTU/hour
Maximum power consumption [W] 21.52 W
Maximum heat dissipation [BTU/hour] 73.43 BTU/hour
Static power consumption 10.52
MTBF [years] 75.32 years
MTTR [hours] 2 hours
Availability > 0.99999
Noise at normal temperature (acoustic power) [dB(A)] 44.5 dB(A)
Noise at normal temperature (acoustic pressure) [dB(A)] 32.5 dB(A)
Long-term operating temperature [C(F)] -5C to +50C (23F to 122F) at an altitude of 0-1800 m (0-5905.44 ft.)
Storage temperature [C(F)] –40C to +70C (–40F to +158F)
Long-term operating relative humidity [RH] 5% RH to 95% RH (non-condensing)
Long-term operating altitude [m(ft.)] 0–5000 m (0–16404 ft.)
Storage altitude [m(ft.)] 0-5000 m (0-16404 ft.)
Power supply mode AC built-in
Rated input voltage [V] AC input: 100–240 V AC; 50/60 Hz
Input voltage range [V] AC input: 90 V AC to 264 V AC; 45 Hz to 65 Hz
Maximum input current [A] 0.8 A
Memory 2 GB
Flash memory Physical space: 1 GB
Console port RJ45
Service port surge protection [kV] Common mode: +7 kV
Power supply surge protection [kV] Differential mode: +6 kV; common mode: +6 kV
Ingress protection level (dustproof/waterproof) IP20
Types of fans Built-in
Certification EMC certification
Safety certification
Manufacturing certification
