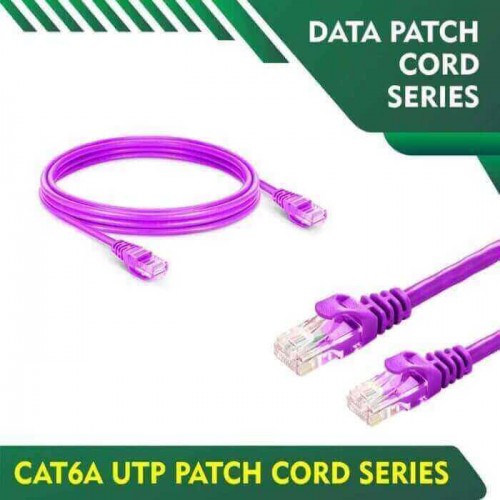

TMT Global 6A4PBB40 Cat6a 24AWG UTP Patch Cable 40 Meter - Voilet
Part No: 6A4PBB40
Call for Quote
Indicative price — subject to change. Request a quote for confirmed pricing.
Specifications
- Manufacturer
- TMT GLOBAL
- Model
- TMT Global Cat6a 24AWG UTP
- Manufacturer Part No
- 6A4PBB40
- Compatible Country
- Middle East, Africa, Iran, Dubai
- Country of Origin
- UAE
Alternate / cross-brand similar products
AI-matched alternatives based on specifications
Product description & technical overview
TMT GLOBAL TMT Global Cat6a 24AWG UTP
TMT Global cat6a 24awg utp patch cable 40 meter are Manufactured Tested and Complied with IEC 60332-1-2 EN 50173-1:2011 ISO/IEC11801:2011(Ed. 2.2) ANSI/TIA/EIA-568.2-D IEC61935-2:2010(Ed.3.0) EN 50173-2:2007 including Amendment A1:2010 Requirements for Patch Cord Assemblies and Provide High Performance levels for structured cabling systems.cat6a 24awg utp patch cable 40 meter
APPLICATION
10BASE-T, 100BASE-TX Fast Ethernet,
1000BASE-T (IEEE802.3
100VG-AnyLAN (IEEE802.12)
550 MHz Broadband Video
Voice, T1, ISDN
155/ 622 Mbps ATM
Power over Ethernet (POE)
GENERAL SPECIFICATION
4 Pairs shielded Twisted Pair (UTP) Cable
Gold Plated: 30U”
Color Code: Aqua/Black/Blue/green/Grey/Orange/Red/Violet/White/Yellow r custom color
Length : 0.12/0.15/0.50/1/2/3/5/8/10/15/20/25/30/40/50/70/100/meter r custom Length
Contact blade: Phosphor Bronze
Insulation Material: HD-PE-PVC-LSZH
Jacket Material: PVC UL94V-0
PHYSICAL AND MECHANICAL PROPERTIES
Conductor Resistance: <5Ω – <20Ω
Insulation Resistance: >10MΩ
Characteristic Impedance: 100 ― 6 Ohm @ 1-250MHz -1-500 MHz
Contact Resistance: 20 m Ohm max
Resistance unbalance: 2% max
Dielectric strength: 1000 volts/1 minute min rms
Cable to Plug Tensile Strength: 9 Kgf (90N) min
Durability: 750
Temperature Operating Range: -25°C to 70°C
Country Of Origin: Made in UAE
