Ezviz CS-DB2-5MP Battery-powered Video Doorbell Kit - 318500049
Part No: 318500049
Price NA
No current market price found — request a quote for Disti pricing.
Specifications
- Manufacturer
- Ezviz
- Model
- Ezviz CS-DB2-5MP
- Manufacturer Part No
- 318500049
- Compatible Country
- Middle East, Africa, Iran, Dubai
- Country of Origin
- China
Recommended products
Similar or newer options from the same brand

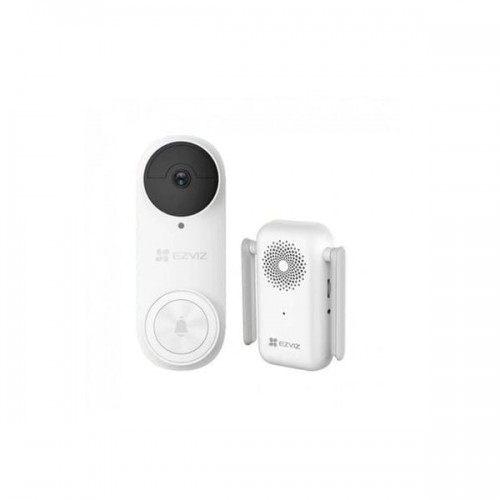

EZVIZ DB2 Pro Battery-powered Video Doorbell Kit - 318500118
Price NA
Market rate · indicative
Ezviz DB2-B 2K Battery-Powered Video Doorbell Kit - CS-DB2-A0-2C3WPB-B
Price NA
Market rate · indicative
R200
Ezviz CS-HP7-R200-1W2TFC 2-Family Kit Smart Home Video Doorphone System - 318500248
AED 1,040
Indicative list price — request a quote for Disti pricing.
Ezviz DB2C Wire-Free Video Doorbell with Chime - 303101736
AED 257
Indicative list price — request a quote for Disti pricing.
Alternate / cross-brand similar products
AI-matched alternatives based on specifications
Product description & technical overview
Ezviz Ezviz CS-DB2-5MP
| Camera Parameters | |
|---|---|
| Image Sensor | 1/2.7" Progressive Scan CMOS (Supports low light sensitivity) |
| Lens | 2.0 mm F2.0, view angle: 176 (Diagonal) |
| Day & Night | IR-cut filter with auto-switching |
| Video Parameters | |
| Max. Resolution | 2000 x 1504 |
| DNR | 2D/3D DNR |
| Video Compression | H.265 / H.264 |
| Frame Rate | Max: 15fps; Self-Adaptive during network transmission |
| PIR Sensor | |
| Sensing Angle | 100 |
| Sensing Distance | Max. 5 m (16.4 ft) |
| Sensitivity | User adjustable (High, Medium, Low) |
| Interface | |
| Audio Input | Built-in high-sensitivity microphone |
| Audio Output | Built-in high-power speaker |
| Reset Button | Yes |
| Network Parameters | |
| Protocol | EZVIZ Cloud Proprietary Protocol |
| Interface Protocol | EZVIZ Cloud Proprietary Protocol |
| Functions | |
| Intelligent Alarm | PIR + human shape smart motion detection |
| Tamper Alarm | Sound and light anti-dismantling alarm (supports smartphone alerts) |
| Video Intercom | Long-distance video two-way talk |
| Wi-Fi Parameters | |
| Wi-Fi Standard | IEEE 802.11b/g/n |
| Frequency Range | 2.4 GHz - 2.4835 GHz |
| Channel Bandwidth | Supports 20 MHz |
| Security | 64/128-bit WEP, WPA/WPA2, WPA-PSK/WPA2-PSK |
| Transmission Rate | 11b: 11Mbps; 11g: 54Mbps; 11n: 150Mbps |
| General | |
| Operating Conditions | -20C to 50C (-4F to 122F), Humidity < 95% (non-condensing) |
| Ingress Protection | IP65 |
| Size | 150 x 58 x 32 mm (5.91 x 2.28 x 1.24 inch) |
| Battery Capacity | 5200mAh rechargeable lithium battery |
| Power Supply | DC 5V + 10% 2A |
| Power Consumption | Max. 2W |
| Chime | |
| Size | 100 x 55 x 35 mm (3.94 x 2.17 x 1.38 inch) |
| Power Supply | AC 110–240V |
| Wi-Fi Standard | IEEE 802.11b/g/n |
| Ringtone | Supports 20 ringtones with adjustable volume |
| Audio Output | 72 dB within 1 meter |
| Storage | Supports microSD card up to 256 GB |
| In the Box | |
| - DB2 Video Doorbell - Chime - Mounting Plates - Inclined Mounting Plates (2) - Screwdriver and Screw Kits (2) - Foam Sticker - Plate Foam - Drill Template - Pin - U-shaped Wire and Wire Connectors (3) - Power Cable - Quick Start Guide - Installation Guide - Regulatory Information |
|
| Certifications | |
| UL / CE / FCC / REACH / WEEE / RoHS | |
Download Ezviz CS-DB2-5MP Datasheet
