Ezviz

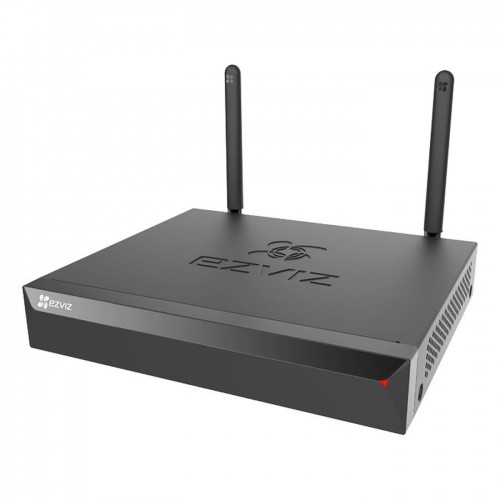

Ezviz CS-X5S-4W Wireless NVR with HDMI & VGA Outputs - 303000430
Part No: 303000430
Price NA
No current market price found — request a quote for Disti pricing.
Specifications
- Manufacturer
- Ezviz
- Model
- Ezviz CS-X5S-R100-4W
- Manufacturer Part No
- 303000430
- Compatible Country
- Middle East, Africa, Iran, Dubai
- Country of Origin
- China
Recommended products
Similar or newer options from the same brand
R400
Ezviz CS-HP7-R400-1W2TFD-PRO 4K Palm Vein Video Doorphone - 318500253
Price NA
Market rate · indicative
R400
Ezviz HP7 Pro 4K Palm Vein Video Doorphone - CS-HP7-R400-1W2TFD (Pro)
Price NA
Market rate · indicative
R200
EZVIZ CS-DL-IC-CPU-R200 (4pcs) - 310500519
Price NA
Market rate · indicative
R200
Ezviz H6c G1 4K Next-Generation Pan & Tilt Wi-Fi Smart Home Indoor Camera - CS-H6c-R200-8H8WFL
Price NA
Market rate · indicative
Alternate / cross-brand similar products
AI-matched alternatives based on specifications
Product description & technical overview
Ezviz Ezviz CS-X5S-4W
| CS-X5S-R100-4W NVR | |
|---|---|
| IPC Access Capability | |
| Wireless/Wired IPC Access Capability | 3K x 4 / 3K x 8 |
| Wired IPC Access Capability | 3K x 4 (X5S-4W) / 3K x 8 (X5S-8W) |
| Network Parameters | |
| Antenna Number | 2 |
| Max Wireless Range | 100 m |
| Radio Frequency | 2.4 GHz |
| Ethernet Port | One 10/100M adaptable Ethernet interface |
| Required Access Bandwidth | 50 Mbps / 100 Mbps |
| Video Output | |
| VGA | 1 channel (identical to HDMI output), up to 1920×1080/60Hz |
| HDMI | 1 channel, resolution up to 2592×1944/30Hz |
| Audio/Video Codec | |
| Recording Resolution | 3K / 2K+ / 2K / 1080p / UXGA / 720p / VGA / 4CIF / 2CIF / CIF / QCIF |
| Video Encoding | H.265 / H.264 |
| Decode Playback | Supports 4x3K (X5S-4W) / 8x3K (X5S-8W) |
| Video Recording Management | |
| Recording Mode | Manual recording, Motion detection recording, Scheduled recording, Event-triggered recording |
| Backup Mode | Hard disk backup, Internet application backup |
| Playback Mode | Instant, Normal, Event, Tag, Log event playback |
| Open Protocol | |
| Supported Protocols | HIKVISION, ONVIF (V2.5) |
| HDD | |
| Interface Type | One built-in SATA port |
| Capacity | Supports 1TB to 8TB 3.5-inch HDD |
| External Interface | |
| Audio Input / Output | Not supported |
| Hardware Reset | Supported |
| USB 2.0 Interface | 2 ports |
| Power & Consumption | |
| Power Supply | DC 12V / 1.5A |
| Power Consumption | < 8W (standby) |
| Dimensions & Weight | |
| Product Dimensions | 235 x 270 x 44.5 mm (9.25 x 10.6 x 1.75 inch) |
| Packaging Dimensions | 387 x 362 x 75 mm (15.2 x 14.3 x 3 inch) |
| In the Box | |
| - X5S NVR x 1 - Power Adapter x 1 - Mouse x 1 - Screw Kit x 1 - Regulatory Information x 2 - Quick Start Guide x 1 |
|
| Certifications | |
| Certifications | CE / UL / RoHS / WEEE / REACH |
