Hikvision

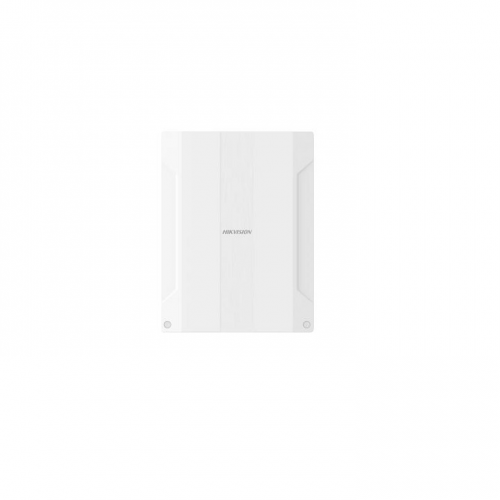

Hikvision DS-PWA96-M2H-WB AX PRO Ultra Wireless 4G Control Panel - 302401942
Part No: 302401942
Price NA
No current market price found — request a quote for Disti pricing.
Specifications
- Manufacturer
- Hikvision
- Model
- Hikvision DS-PWA96-M2H-WB
- Manufacturer Part No
- 302401942
- Compatible Country
- Middle East, Africa, Iran, Dubai
- Country of Origin
- China
Recommended products
Similar or newer options from the same brand

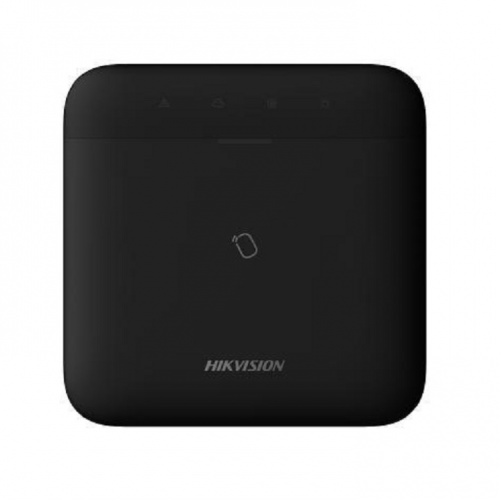

Hikvision DS-PWA96-M-WB AX PRO (433MHz) Wireless 4G Control Panel - Black
Price NA
Market rate · indicative

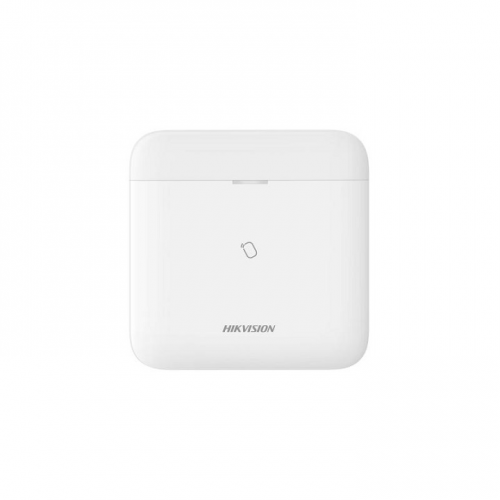

Hikvision DS-PWA96-M-WB AX PRO (433MHz) Wireless 4G Control Panel - White - 302401704
Price NA
Market rate · indicative

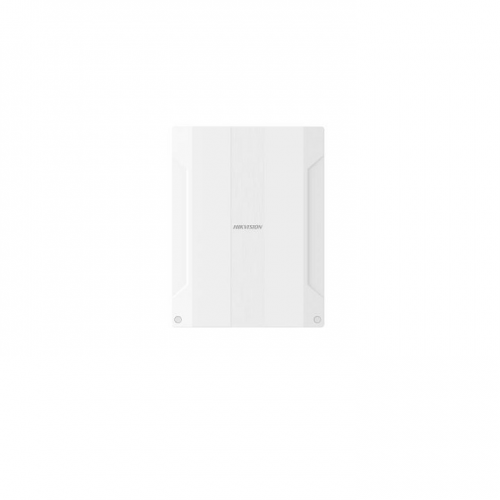

Hikvision DS-PWA96-M2-WB AX PRO Wireless Alarm Panel With Big Battery Size - 302401944
Price NA
Market rate · indicative
Hikvision DS-PM1-I16O2-WB Multi IO transmitter - 302401917
Price NA
Market rate · indicative
Alternate / cross-brand similar products
AI-matched alternatives based on specifications
Hikvision
Hikvision DS-PWA96-M-WB AX PRO (433MHz) Wireless 4G Control Panel - Black
Price NA
Market rate · indicative
Hikvision
Hikvision DS-PWA96-M-WB AX PRO (433MHz) Wireless 4G Control Panel - White - 302401704
Price NA
Market rate · indicative
Hikvision
Hikvision DS-PWA96-M2-WB AX PRO Wireless Alarm Panel With Big Battery Size - 302401944
Price NA
Market rate · indicative
AKUBELA
Akubela RT61-PoE-US HyPanel Lux Control Panel
Price NA
Market rate · indicative
Product description & technical overview
Hikvision Hikvision DS-PWA96-M2H-WB
Software features
Tag 48
Area 32
Zones Up to 96 (including 48 PIRCAMs & 16 onboard Wired Zones & 2 onboard Wired Outputs)
Onboard video clips 4
Installer 1
User 46
Admin 1
Voice Prompt Supported
Loudspeaker built in Supported
Tag reader built in No
Memory Log stored 5000
Programming tools Hik-Connect/Hik-ProConnect/Web Portal/ IVMS4200/ Convergence Cloud
Firmware upgrade APP/Web Portal
Arm modes Away/Stay
Automatic Arm/Disarm Timers Supported
Forced Arming with Open Zones Supported
Diagnostics via the APP or Web Supported
ARC protocol SIA DC09(SIA level 2, Contact ID), ISUP, ISAPI (SDK)
Hik-IP Receiver & Hik-IP Receiver Pro (Sur-Gard & Ademco 685)
Supports video verification and remote control
User APP for operating Supported
Installer APP for programming Supported
Web server for maintenance Supported
General
Operation temperature -10 C to 40 C
Shell material Plastic
Dimension(WxHxD) 261x199x86.4mm
Weight 1083g (No battery)
Color White
Download Hikvision DS-PWA96-M2H-WB Datasheet
